Description

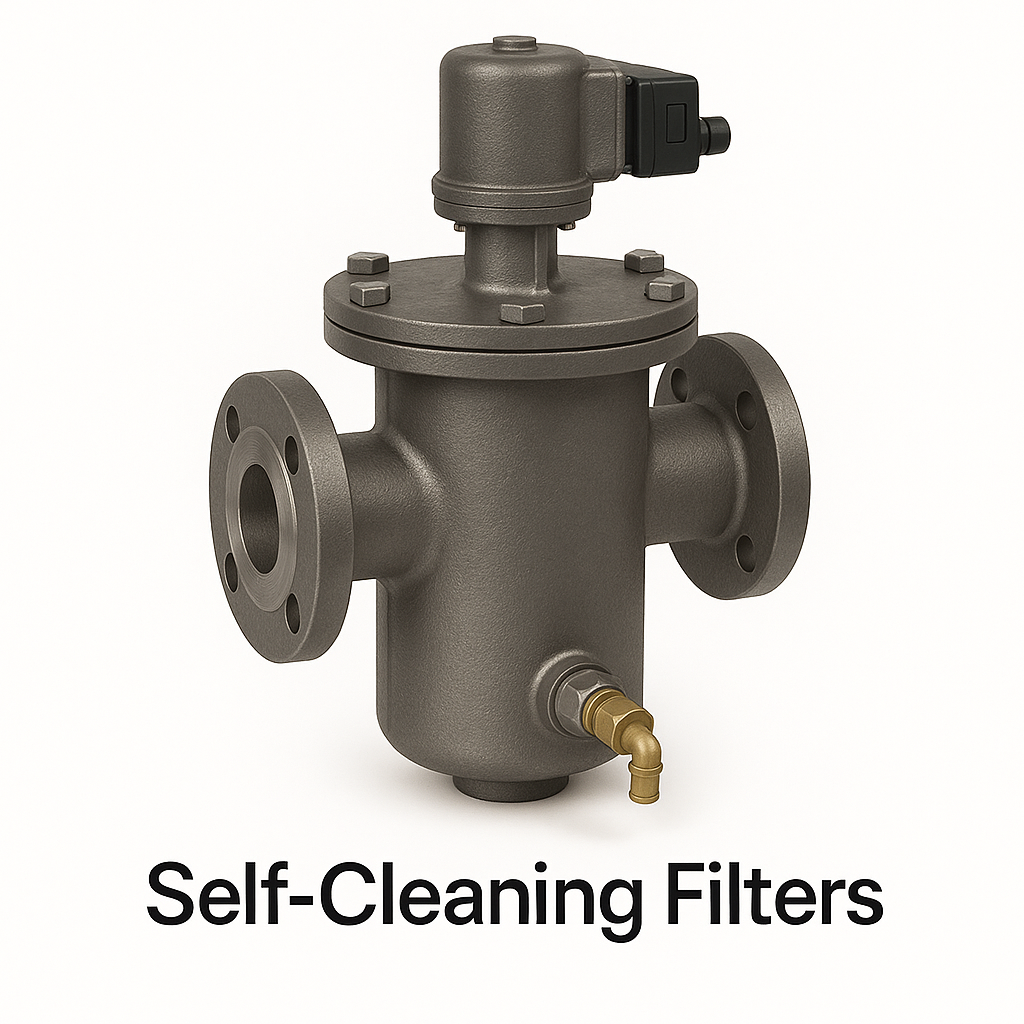

Our Self-Cleaning & Automatic Filters are advanced filtration systems engineered to deliver continuous, uninterrupted operation in demanding industrial, municipal, and agricultural applications. These filters automatically remove contaminants from liquids without the need for manual intervention, minimizing downtime, labor costs, and system disruption.

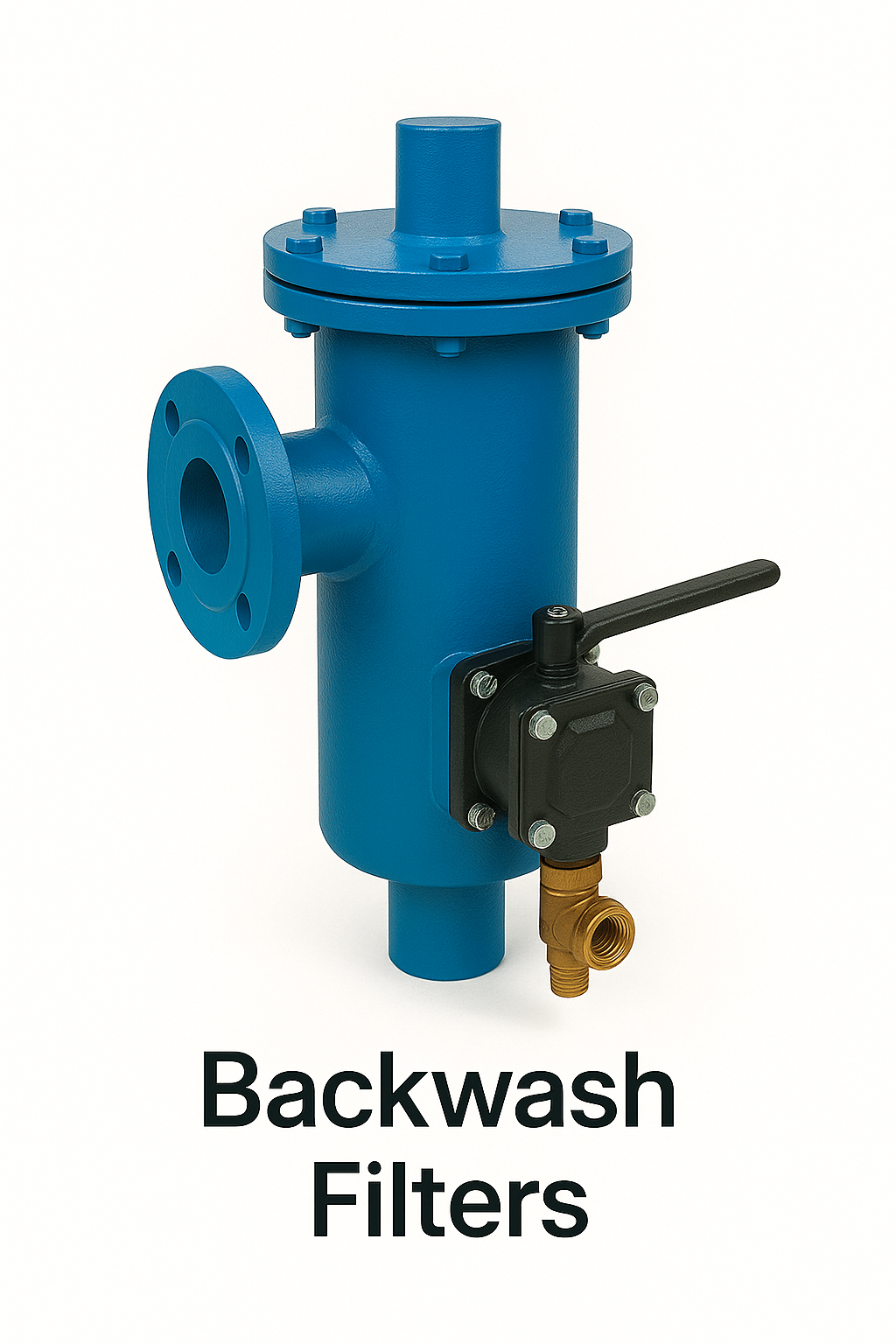

Available in brush, scraper, suction scanning, and disc-based backflush designs, our automatic filters can handle high solids loads, aggressive chemicals, and varying flow rates. They are suitable for filtering water, wastewater, process fluids, and cooling liquids, and are fully compatible with remote control and PLC integration for intelligent system management.
Certified for quality and compliance under ISO 9001, CE, and RoHS standards, our self-cleaning filters ensure sustainable and efficient operations in diverse industries.
Technical Specifications
| Parameter | Specification |
|---|---|
| Filtration Method | Suction Scanning, Brush, Scraper, Disc Backwash |
| Mesh/Micron Rating | 10 to 200 |
| Flow Rate Range | Up to 1000 m³/h (modular scalability) |
| Operating Pressure | 2 – 10 bar |
| Temperature Range | 5°C – 80°C (up to 120°C for special models) |
| Cleaning Cycle | Time-based, pressure differential, or manual trigger |
| Materials of Construction | SS304, SS316, Carbon Steel (coated), Polypropylene |
| Power Supply | 230V/50Hz or 24VDC (control system) |
| Control System | Integrated PLC or external control signal |
| Mounting | Horizontal / Vertical |
Features & Benefits
-
Fully automatic self-cleaning cycles (time or ΔP triggered)
-
No process interruption during cleaning
-
Durable filter screens and long-lasting drive systems
-
Available in compact and high-capacity models
-
Reduces labor, waste, and maintenance costs
-
Compatible with water, wastewater, and corrosive liquids
-
Smart system integration with SCADA/PLC
Applications
-
Raw water filtration (rivers, lakes, wells)
-
Cooling tower and HVAC system filtration
-
Pre-filtration for membrane and RO systems
-
Wastewater and effluent treatment
-
Irrigation and fertigation systems
-
Pulp & paper, mining, power plants, and steel industries
Certifications
-
ISO 9001 – Quality Management
-
CE Marking – European Conformity
-
RoHS – Environmental Compliance
-
PED – Pressure Equipment Directive (on request)
📩 For custom design, sizing support, or integration assistance, contact us at: sales@smpssystems.com
