Description
Product Description:

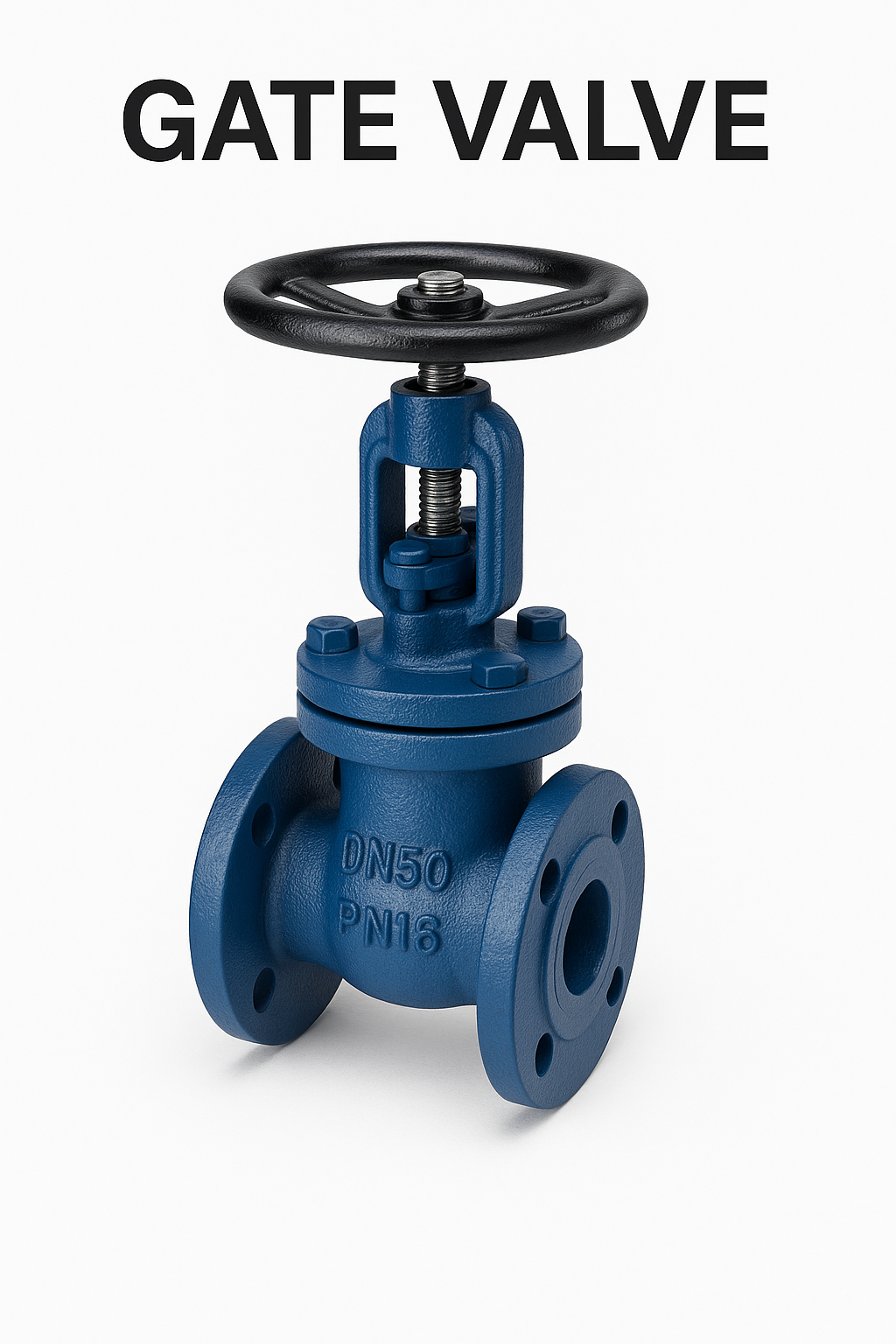

Our Gate Valves are engineered for smooth, full-bore flow control in pipelines handling water, steam, oil, gas, and other fluids. Built for durability and performance, these valves provide a tight shut-off with minimal pressure loss and are suitable for both aboveground and underground installations.
We offer a wide range of gate valve designs including:
-

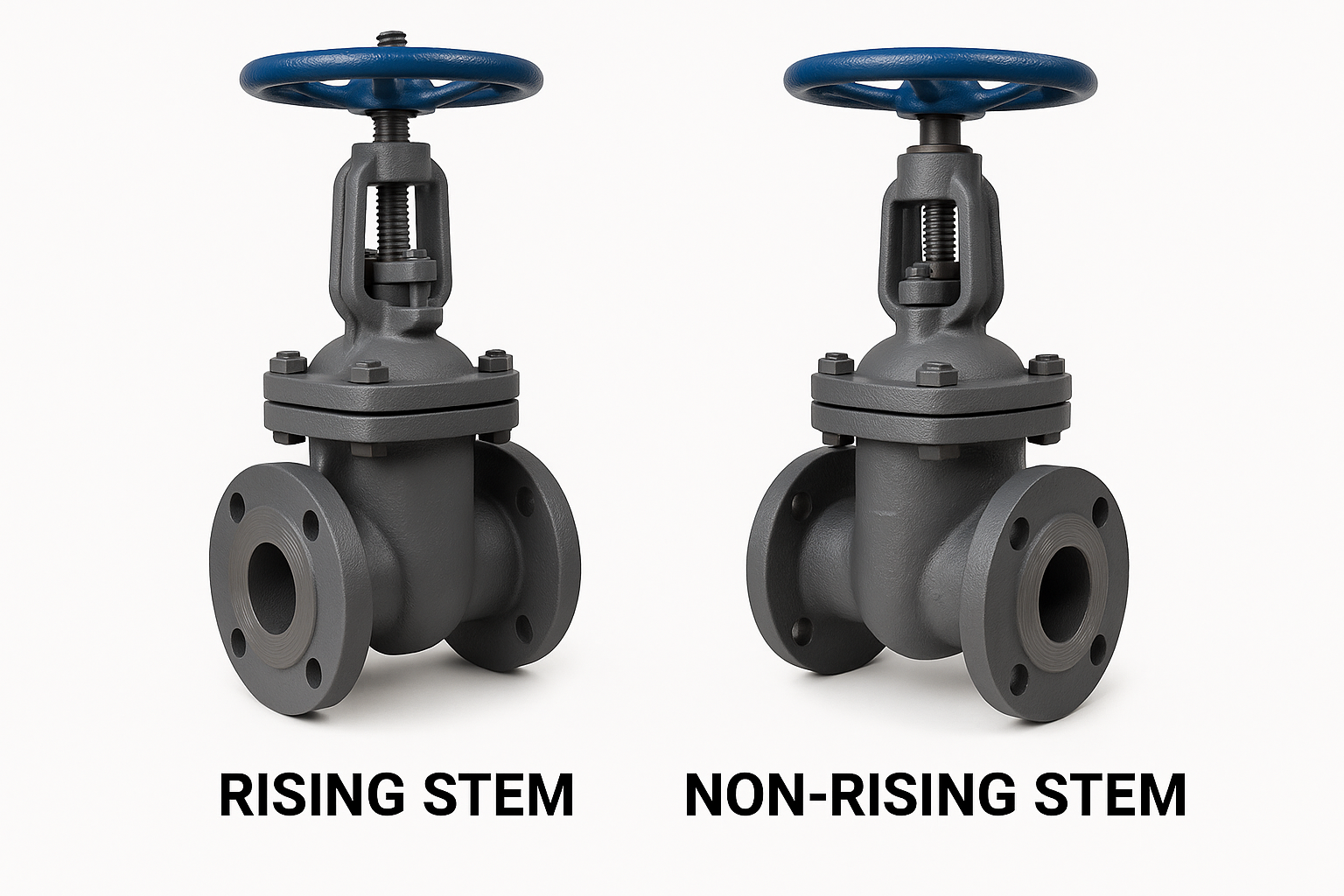

Rising Stem Gate Valves – Ideal for visual position indication and easy operation.
-
Non-Rising Stem Gate Valves – Compact design suitable for limited-space installations.
-

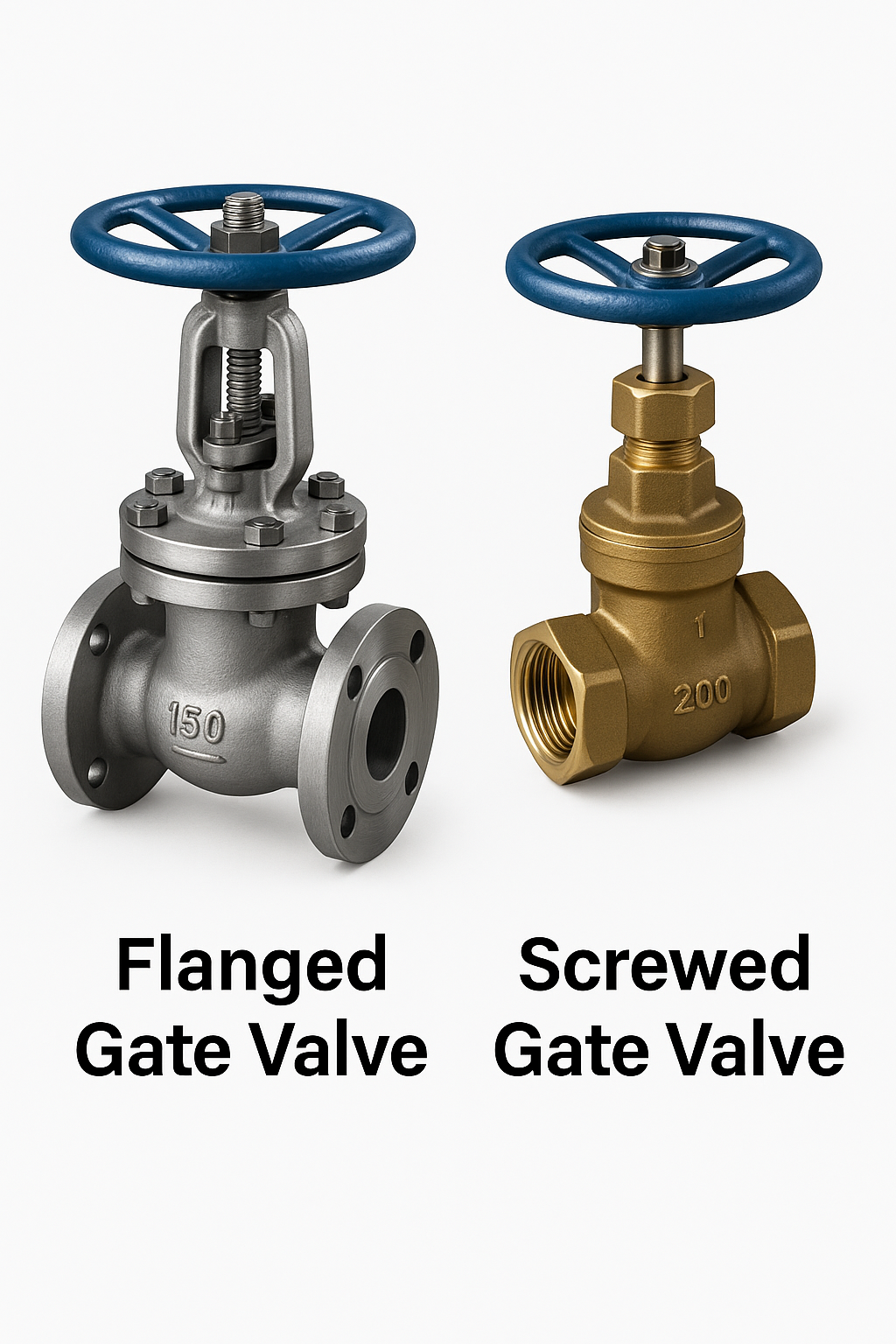

Flanged Gate Valves – Provide secure, leak-free connections for high-pressure systems.
-
Screwed Gate Valves – Easy to install and ideal for small-diameter pipelines.
-

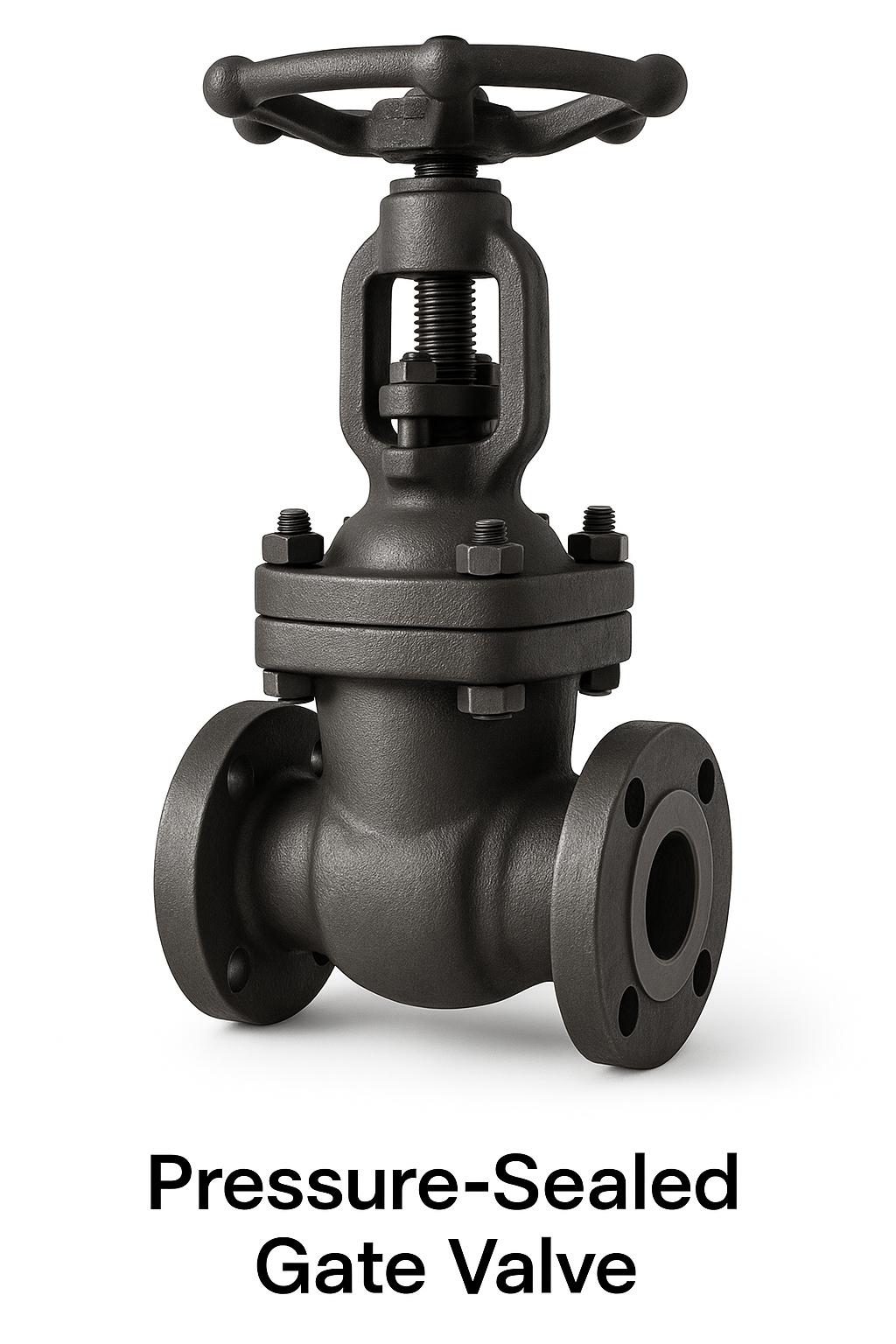

Pressure-Sealed Gate Valves – Designed for high-temperature and high-pressure steam or process applications.
All valves are manufactured using high-quality materials such as Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze. Options for manual handwheel, gear-operated, and actuator-operated models are available.
Technical Specifications
| Parameter | Specification |
|---|---|
| Valve Types | Rising Stem, Non-Rising Stem, Flanged, Screwed, Pressure-Sealed |
| Sizes Available | ½” to 48” (custom sizes on request) |
| Body Materials | Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, Bronze |
| Pressure Ratings | PN10 to PN40 / ANSI Class 150–300 |
| Temperature Range | -20°C to +400°C (depending on material) |
| End Connections | Flanged, Threaded, Butt Weld, Socket Weld |
| Operation | Handwheel, Gear, Pneumatic, or Electric Actuator |
| Testing Standard | API 598 / ISO 5208 / MSS-SP-70 |
Key Features:
-
Full bore design ensuring minimal pressure drop
-
Variety of configurations for multiple industrial uses
-
Long-lasting sealing performance and corrosion resistance
-
Compatible with high-pressure and high-temperature operations
-
Easy to operate, install, and maintain
-
Optional automation available for remote operation
-
Suitable for both above-ground and buried service installations
Applications:
-
Water supply and wastewater treatment systems
-
Oil, gas, and petrochemical pipelines
-
Power generation and process plants
-
Fire protection and HVAC systems
-
Marine, mining, and irrigation industries
Certifications:
-
API / ISO / ANSI – Global valve manufacturing standards
-
CE Marking – European conformity
-
ISO 9001 – Quality Management System
-
RoHS – Environmental compliance
-
CSA (Canadian Standards Association) – Certified for use in Canada
📩 For inquiries, quotations, or bulk orders, contact us at sales@smpssystems.com
