Description

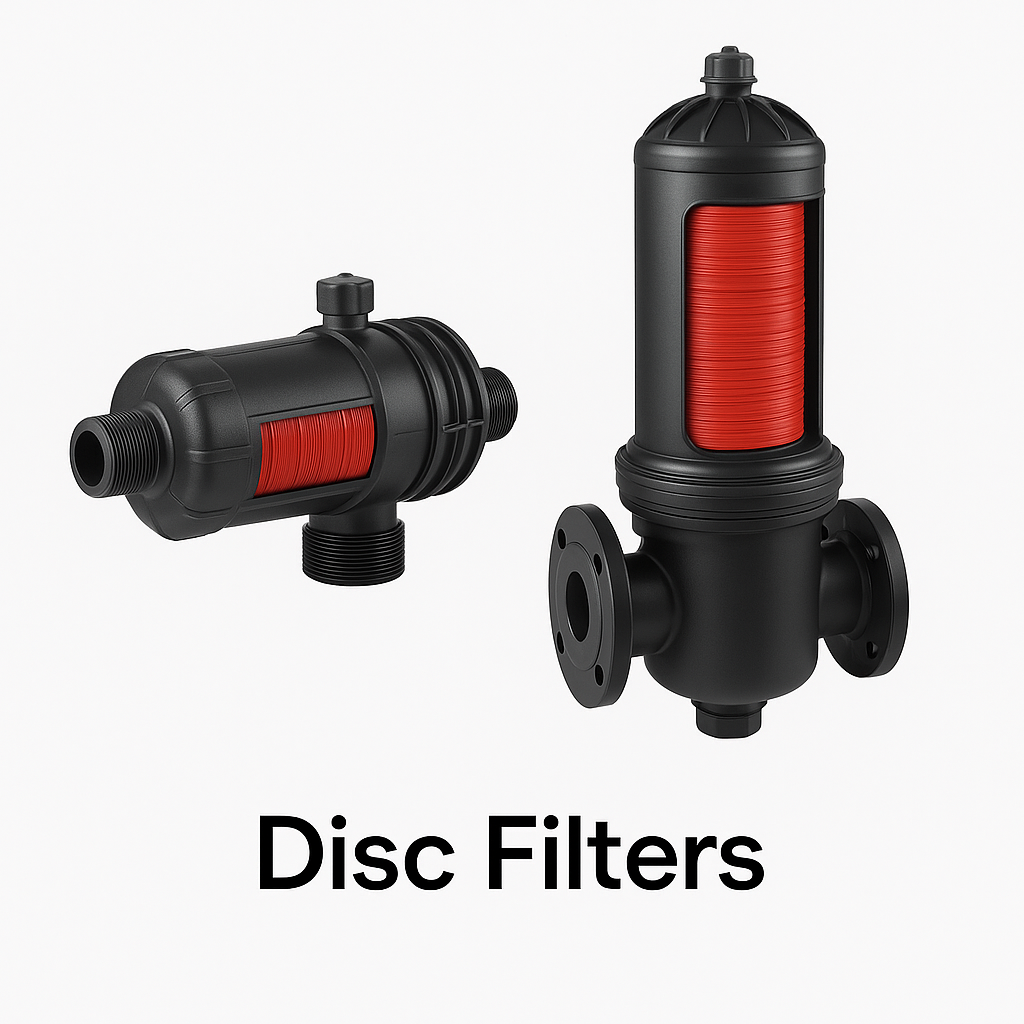

Our Disc Filters offer an efficient and compact solution for solid-liquid separation in irrigation, water treatment, and industrial fluid systems. Designed with stacked, grooved plastic or stainless-steel discs, these filters trap particles as fluid passes through, delivering high dirt-holding capacity and consistent filtration performance with minimal maintenance.

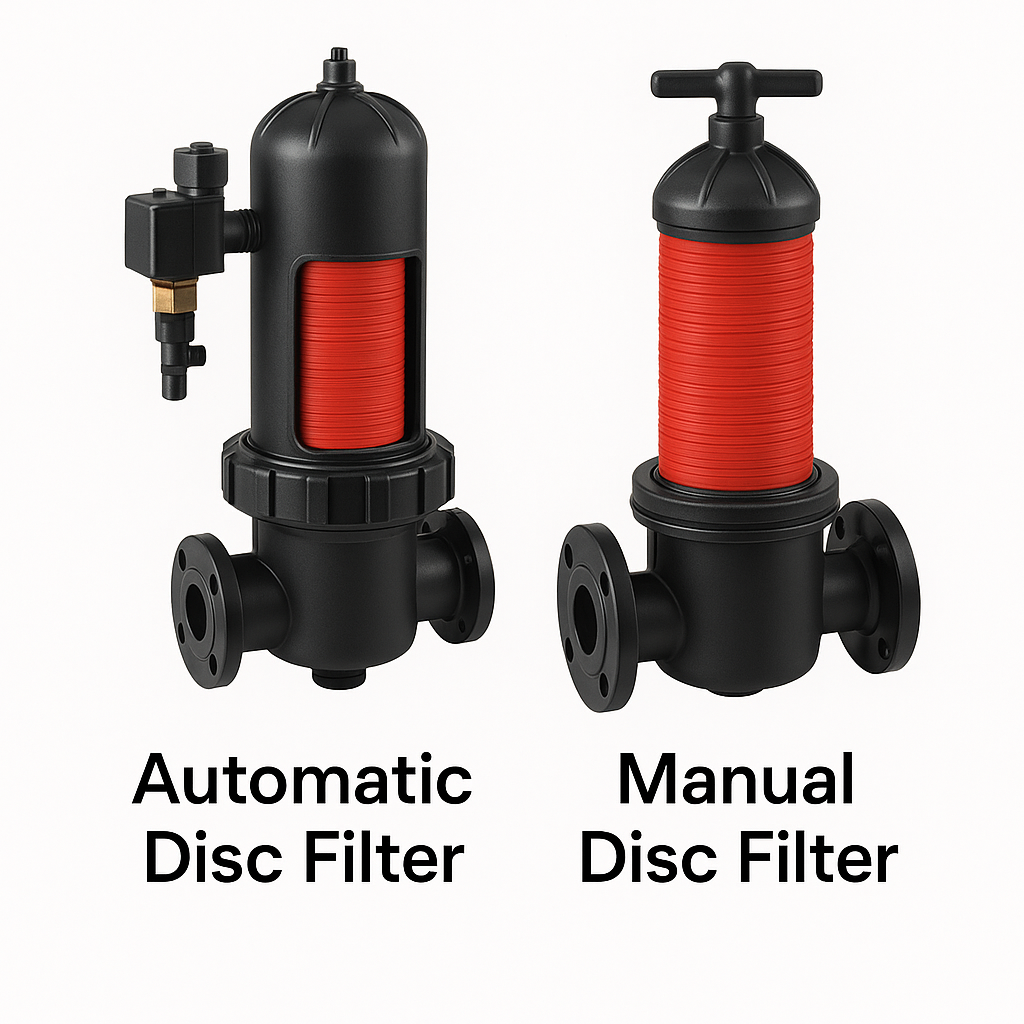

Available in both manual and automatic self-cleaning models, disc filters are ideal for high-flow, high-load applications where pressure loss and filtration consistency are critical. Their modular construction allows for scalability and easy integration into existing systems.
All filters meet international quality standards such as ISO 9001, CE, and RoHS, and are suitable for use with potable water, chemicals, and industrial fluids.
Technical Specifications
| Parameter | Specification |
|---|---|
| Filter Type | Manual or Automatic Disc Filter |
| Filtration Rating (Micron) | 20 µm – 400 µm |
| Disc Material | Polypropylene, Nylon, Stainless Steel (optional) |
| Housing Material | Glass-Filled Nylon, Polypropylene, or SS304/316 |

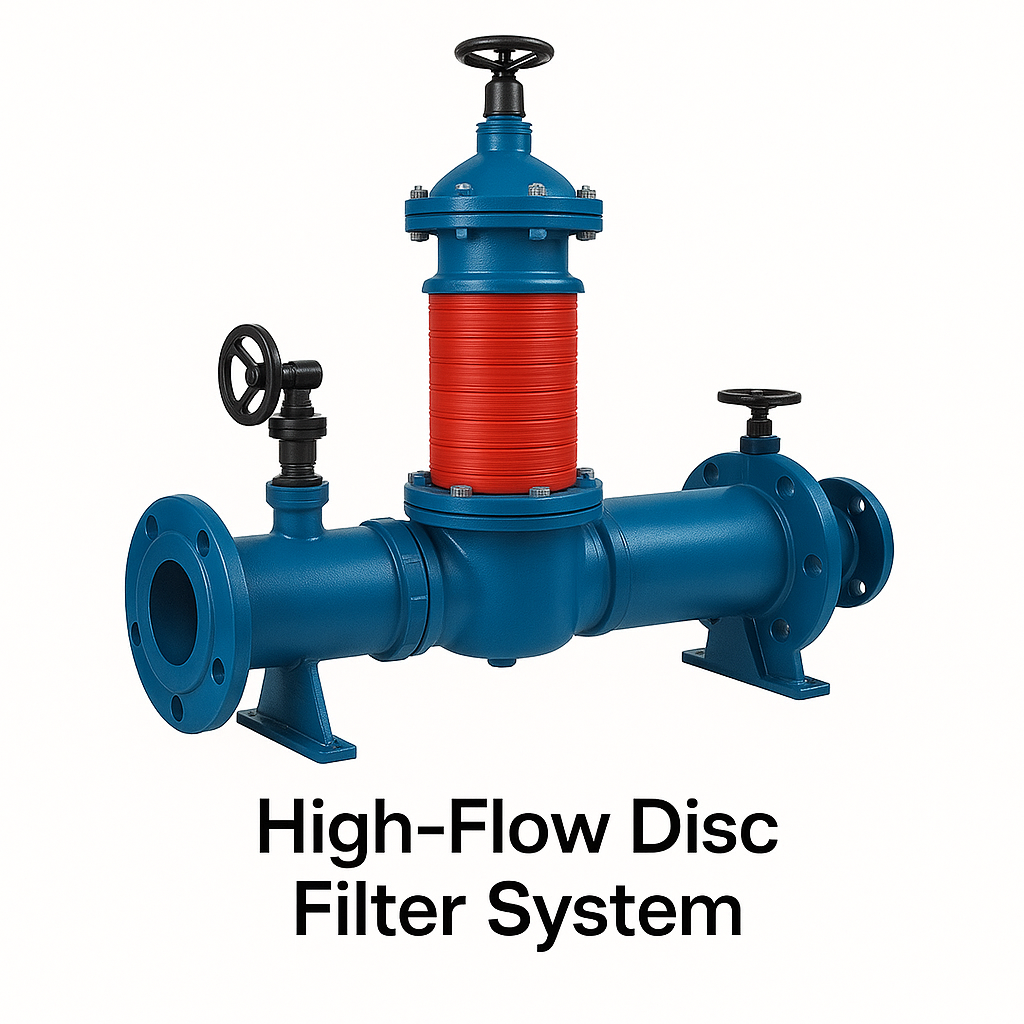

| Maximum Flow Rate | Up to 1000 m³/h (modular, scalable) |
| Operating Pressure Range | 1.5 – 10 bar |
| Operating Temperature | 5°C – 70°C (standard models) |
| Connection Types | Threaded, Flanged, Grooved, Clamp |
| Cleaning Method | Manual or Automatic Backflush |
Features & Benefits
-
High dirt-holding capacity and filtration consistency
-
Compact design with large filtration area
-
Resistant to clogging, corrosion, and chemicals
-
Optional auto-backflush system for uninterrupted operation
-
Quick disassembly for easy maintenance
-
Energy-efficient with low pressure drop
Applications
-
Agricultural & landscape irrigation systems
-
Water treatment (pre-filtration and tertiary treatment)
-
Cooling water and process water recycling
-
Chemical and fertilizer dosing systems
-
Industrial fluid filtration
-
Pulp & paper and textile wastewater systems
Certifications
-
ISO 9001 – Quality Management Systems
-
CE Marking – European Conformity
-
RoHS – Environmental Compliance
-
NSF / ANSI – Drinking water contact (select models)
📩 For technical assistance or tailored filtration solutions, contact us at: sales@smpssystems.com
